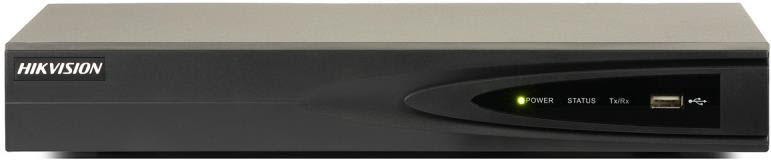

DS-7600NI-E2 series NVR (Network Video Recorder) is a new generation recorder develop by Hikvision
independently. Combined with multiple advanced technologies, such as audio and video decoding technology,
embedded system technology, storage technology, network technology and intelligent technology. It can both
work alone as a recorder and cooperate with other device to form a comprehensive surveillance system.
The DS-7600NI-E2 series NVR are widely applied in the areas of finance, public security, military,
communication, transportation, education, etc.

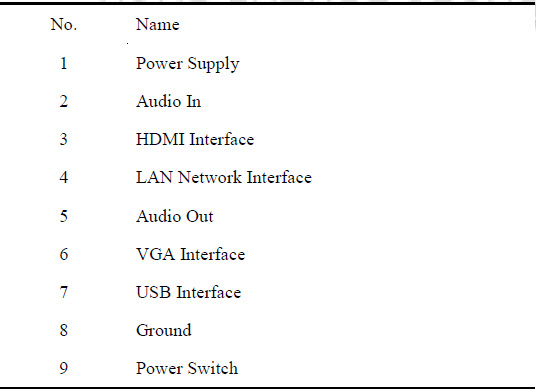

Physical Interface :


Features :
Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA, SAMSUNG, SANYO, SONY, Vivotek, and ZAVIO.
Up to 16 networks cameras can be connected.
Support live view, storage and playback of the connected camera with up to the resolution of 6 megapixels.
Simultaneous HDMI and VGA outputs at up to 1920x1080 resolution.
New GUI and support starting record with one key.
Holiday recording.
Realize instant playback for assigned channel during multi-channel display mode.
Up to 16-ch synchronous playback at 4CIF resolution.
Customization of tags, searching and playing back by tags.
Locking and unlocking record files.
Support HDD quota mode; different capacity can be assigned to different channel.
2 SATA hard disks can be connected.
1 self-adaptive 10M/100M/1000M network interface is provided.
Support Hikvision DDNS (Dynamic Domain Name System).
Support network detection, including network delay, packet loss, etc.
Support enabling H.264+ to ensure high video quality with lowered bitrate.
